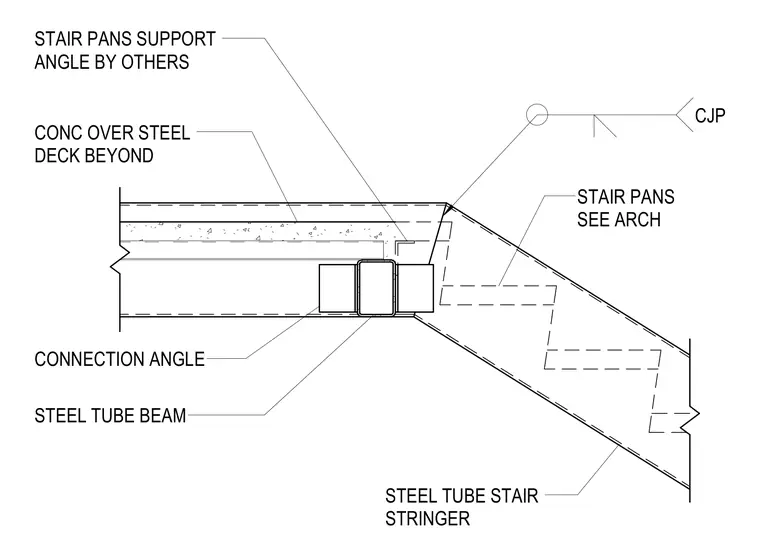

A steel tube stair stringer connects to a structural steel tube beam using a complete joint penetration weld. A stair pans support angle provided by others sits adjacent to the connection, while concrete over a steel deck extends beyond the structural assembly. A connection angle helps frame the supporting tube beam.
STEEL TUBE STAIR STRINGER CJP CONC OVER STEEL DECK BEYOND STAIR PANS SEE ARCH STEEL TUBE BEAM CONNECTION ANGLE STAIR PANS SUPPORT ANGLE BY OTHERS
