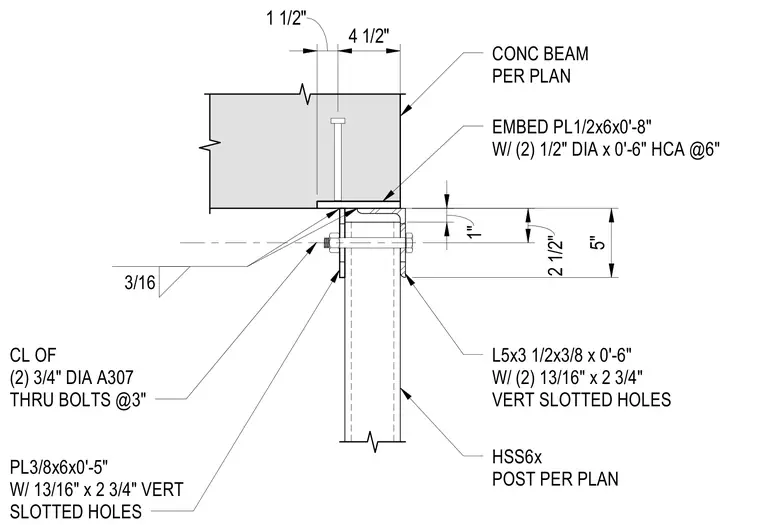

This connection details a hollow structural section post anchored beneath a concrete beam per plan. An embed plate measuring 1/2 inch by 6 inches by 0 feet 8 inches is cast into the concrete beam with two 1/2 inch diameter by 0 feet 6 inches headed concrete anchors spaced at 6 inches. A hollow structural section post connects to the embed plate via a 3/8 inch plate and an angle measuring 5 inches by 3 1/2 inches by 3/8 inches by 0 feet 6 inches. Both the angle and connection plate feature vertical slotted holes measuring 13/16 inches by 2 3/4 inches. Two 3/4 inch diameter A307 through bolts secure the assembly with a centerline spacing of 3 inches, providing vertical slip capability. A 3/16 inch fillet weld is applied at the connection interface.
1" 5" 2 1/2" L5x3 1/2x3/8 x 0'-6" W/ (2) 13/16" x 2 3/4" VERT SLOTTED HOLES CL OF (2) 3/4" DIA A307 THRU BOLTS @3" 1 1/2" 4 1/2" CONC BEAM PER PLAN PL3/8x6x0'-5" W/ 13/16" x 2 3/4" VERT SLOTTED HOLES HSS6x POST PER PLAN EMBED PL1/2x6x0'-8" W/ (2) 1/2" DIA x 0'-6" HCA @6" 3/16
