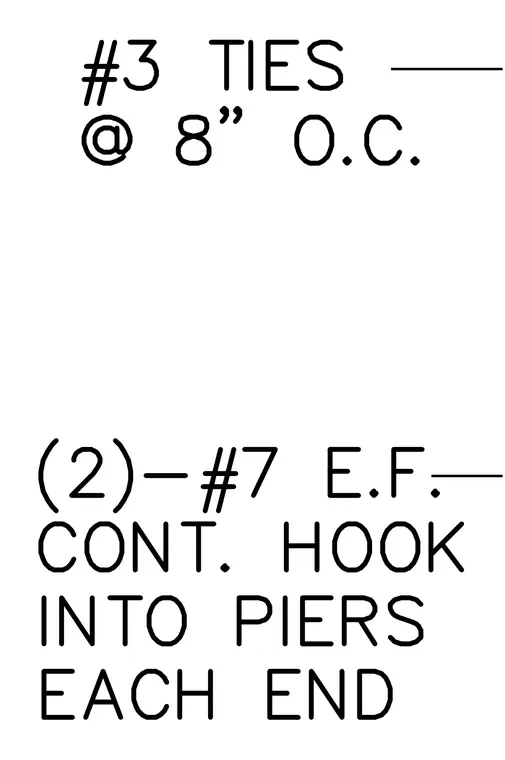

Number 3 steel ties are spaced at eight inches on center. Two number 7 bars are provided each face, with continuous hooks detailed at each end to tie into supporting concrete piers.
