A wood nailer matches the steel beam flange width and connects with seven-eighths-inch diameter welded threaded rods at sixteen inches on center staggered on the beam with a three-quarter-inch maximum countersank depth. Place one rod nine inches maximum from each end of the nailer and from each splice. The sub-purlins are sized per plan and maintain an eight-and-a-half-inch approximate depth. Two rows are used at nailer spacing with four lines where nailer spacing is staggered and six lines where three lines of nailing is required. A five-inch diameter maximum hole for pipes is provided at ten feet on center minimum if required per approved sprinkler drawings.

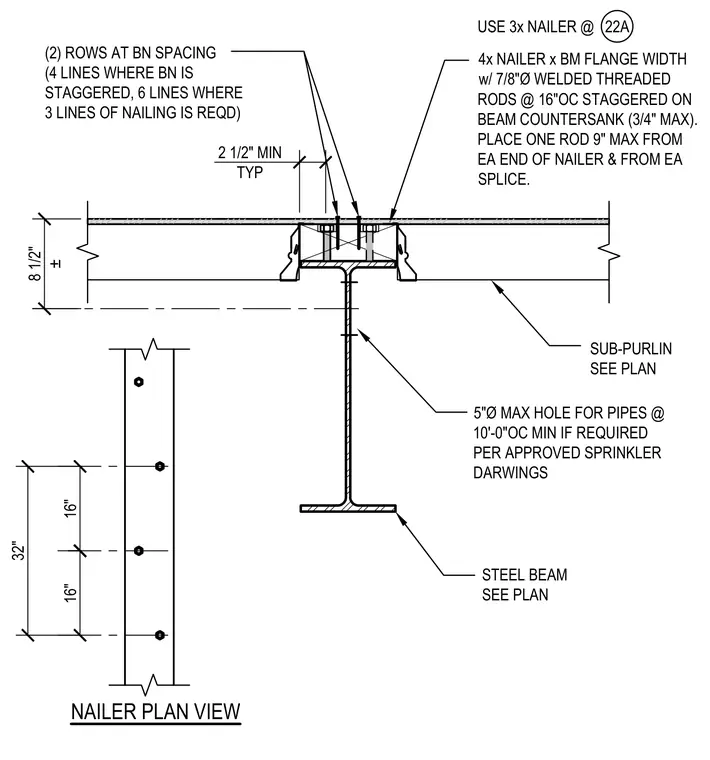

4x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. SUB-PURLIN SEE PLAN 8 1/2" ± STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 5"Ø MAX HOLE FOR PIPES @ 10'-0"OC MIN IF REQUIRED PER APPROVED SPRINKLER DARWINGS 2 1/2" MIN TYP USE 3x NAILER @ 22A
