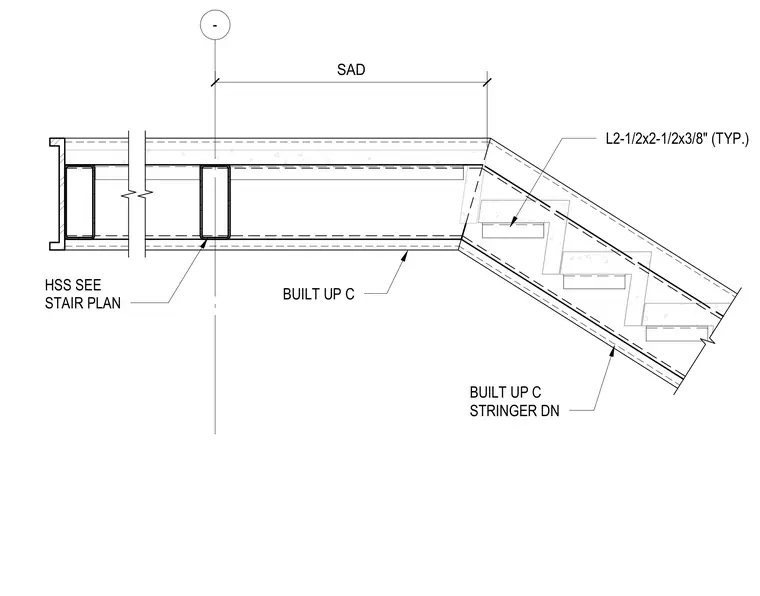

A built-up channel stringer connects downward from the stair framing into a structural hollow structural section located per the stair plan. Typical 2-1/2 by 2-1/2 by 3/8-inch angles support the stair treads. The built-up channel transitions from the floor level to form the downward stair stringer assembly.
- SAD BUILT UP C HSS SEE STAIR PLAN BUILT UP C STRINGER DN L2-1/2x2-1/2x3/8" (TYP.)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
