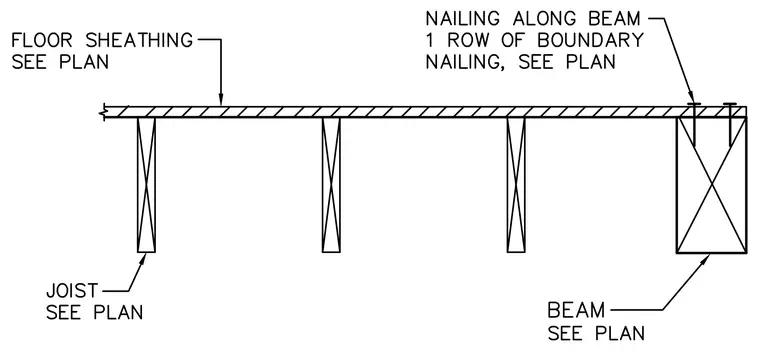

Floor sheathing spans across multiple wood joists and terminates at a perimeter wood beam, sized per plan. One row of boundary nailing secures the sheathing along the beam. Additional nailing is specified along the beam per the structural plan.
