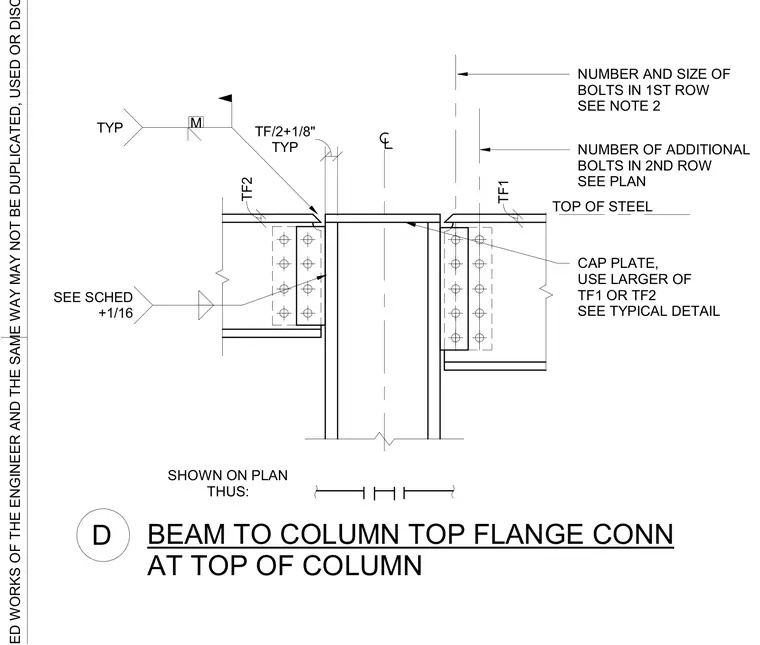

Steel beams connect to a structural steel column utilizing a top cap plate and bolted web connection plates. The cap plate thickness is sized using the larger of flange thicknesses TF1 or TF2 per typical details. Bolted connections are provided in multiple rows with quantities sized per plan and general notes. Clearances and tolerances are specified at the beam ends relative to the column centerline.
CAP PLATE, USE LARGER OF TF1 OR TF2 SEE TYPICAL DETAIL TOP OF STEEL SEE SCHED +1/16 TYP M TYP TF/2+1/8" TF2 TF1 SHOWN ON PLAN THUS: NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN BEAM TO COLUMN TOP FLANGE CONN AT TOP OF COLUMN D
