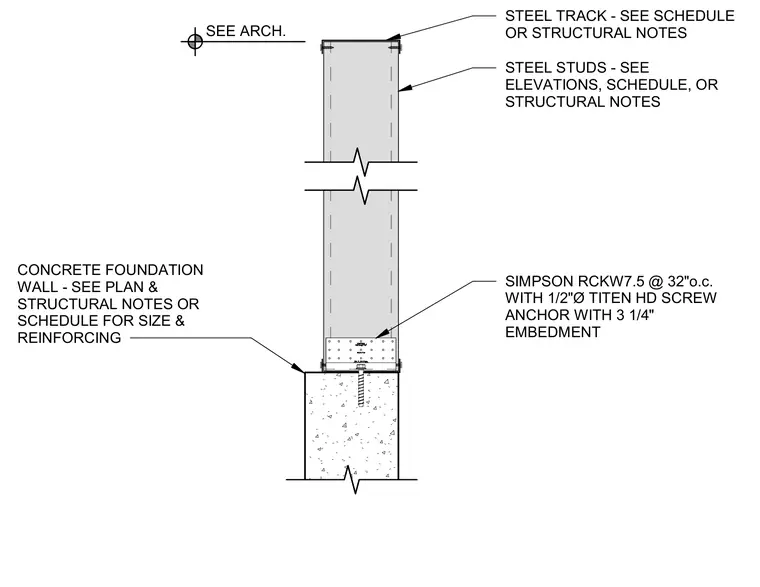

Base connection of a cold-formed steel stud wall bearing on a concrete foundation wall. The steel track and studs are sized per the structural schedule and notes. A Simpson Strong-Tie RCKW7.5 is anchored to the concrete foundation wall at thirty-two inches on center using a one-half-inch diameter Titen HD screw anchor with three and one-quarter inches of embedment.
CONCRETE FOUNDATION WALL - SEE PLAN & STRUCTURAL NOTES OR SCHEDULE FOR SIZE & REINFORCING STEEL TRACK - SEE SCHEDULE OR STRUCTURAL NOTES STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES SIMPSON RCKW7.5 @ 32"o.c. WITH 1/2"Ø TITEN HD SCREW ANCHOR WITH 3 1/4" EMBEDMENT SEE ARCH.
