A steel truss girder is supported by a column utilizing a seven-eighths-inch by eight-inch by thirty-six-inch Grade 50 knife plate. The connection is secured with four three-quarter-inch diameter machine bolts, with bolt size or grade subject to increase for wind uplift as verified by the joist or girder manufacturer. A three-quarter-inch by fourteen-inch wide plate and a three-quarter-inch by six-inch by zero-foot-six-inch plate are integrated into the joint with typical fillet welds, leaving specific areas left unwelded to the girder as noted. A steel joist sits above where occurs per plan.

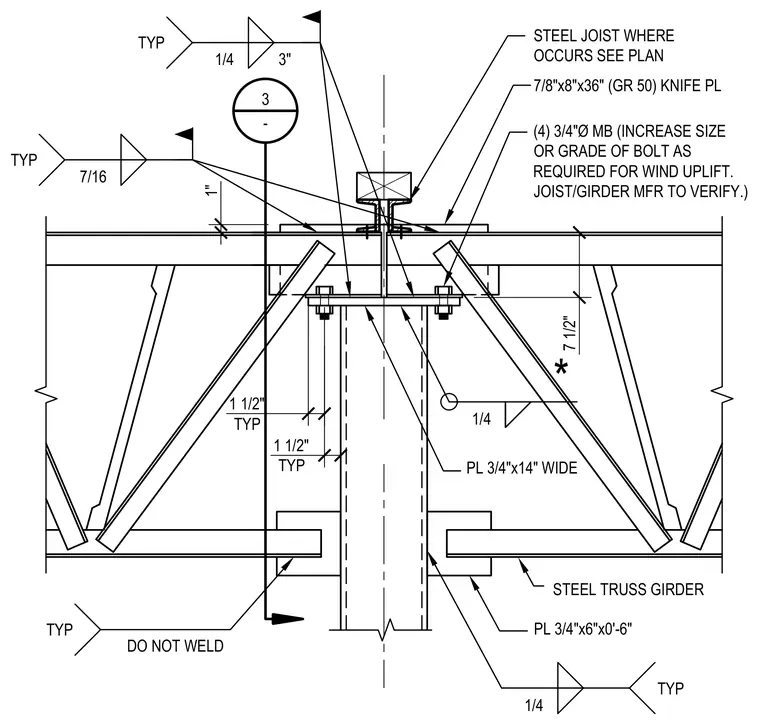

PL 3/4"x6"x0'-6" DO NOT WELD PL 3/4"x14" WIDE 7/8"x8"x36" (GR 50) KNIFE PL STEEL JOIST WHERE OCCURS SEE PLAN 1 1/2" TYP 1" 7 1/2" 3 - 1/4 1/4 TYP TYP 7/16 TYP STEEL TRUSS GIRDER * (4) 3/4"Ø MB (INCREASE SIZE OR GRADE OF BOLT AS REQUIRED FOR WIND UPLIFT. JOIST/GIRDER MFR TO VERIFY.) 1/4 3" TYP 1 1/2" TYP
