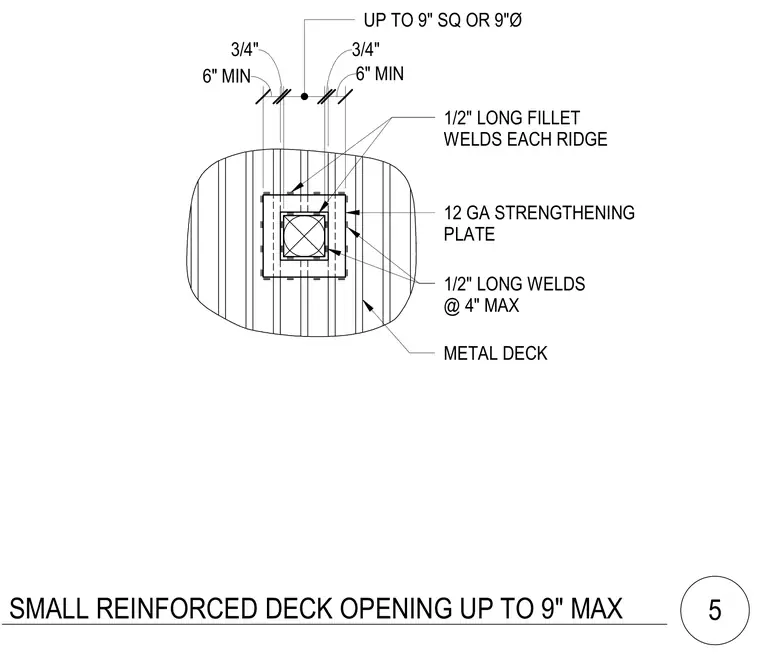

A square or round opening up to nine inches is reinforced in a metal deck using a twelve gauge strengthening plate. The plate is secured with half-inch long fillet welds at each ridge and half-inch long welds spaced at four inches maximum. The opening maintains six inches minimum clearance to adjacent deck conditions.
UP TO 9" SQ OR 9"Ø 1/2" LONG FILLET WELDS EACH RIDGE 12 GA STRENGTHENING PLATE 1/2" LONG WELDS @ 4" MAX METAL DECK 6" MIN 3/4" 3/4" 6" MIN SMALL REINFORCED DECK OPENING UP TO 9" MAX 5
