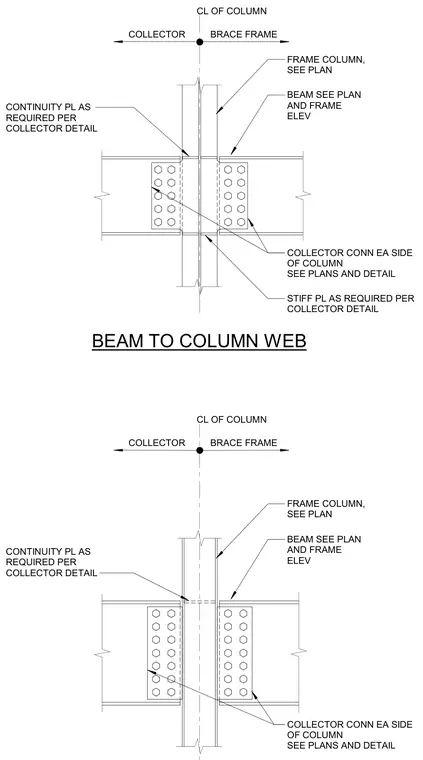

A beam-to-column web connection frames into a vertical steel column. Beams frame into each side of the column web with bolted collector connections sized per plan and frame elevation. Continuity plates and stiffener plates are provided as required per collector details. The centerline of the column aligns with the brace frame and collector.
FRAME COLUMN, SEE PLAN BEAM SEE PLAN AND FRAME ELEV CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL CL OF COLUMN . COLLECTOR BRACE FRAME CL OF COLUMN . COLLECTOR BRACE FRAME COLLECTOR CONN EA SIDE OF COLUMN SEE PLANS AND DETAIL STIFF PL AS REQUIRED PER COLLECTOR DETAIL BEAM TO COLUMN WEB FRAME COLUMN, SEE PLAN BEAM SEE PLAN AND FRAME ELEV CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL COLLECTOR CONN EA SIDE OF COLUMN SEE PLANS AND DETAIL
