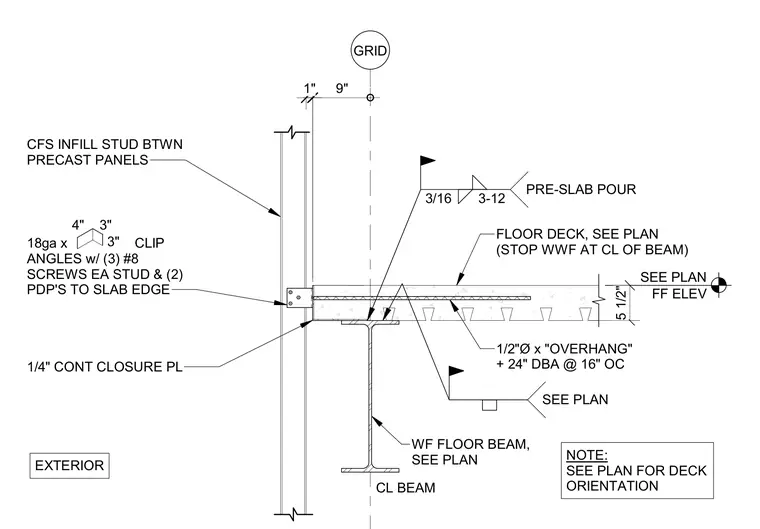

Cold-formed steel infill studs between precast panels connect to the slab edge using eighteen-gauge clip angles fastened with three number eight screws to each stud and two powder-actuated fasteners to the slab edge. A one-quarter-inch continuous closure plate runs along the slab edge above a wide-flange floor beam. The five-and-a-half-inch concrete floor deck includes welded wire fabric stopped at the centerline of the beam, alongside one-half-inch diameter by twenty-four-inch deformed bar anchors at sixteen inches on center. A three-sixteenths fillet weld with a three-to-twelve spacing sequence occurs at the pre-slab pour.
SEE PLAN FF ELEV FLOOR DECK, SEE PLAN (STOP WWF AT CL OF BEAM) WF FLOOR BEAM, SEE PLAN SEE PLAN 1/2"Ø x "OVERHANG" + 24" DBA @ 16" OC 3/16 3-12 PRE-SLAB POUR CL BEAM GRID EXTERIOR NOTE: SEE PLAN FOR DECK ORIENTATION 1/4" CONT CLOSURE PL 5 1/2" 9" 18ga x CLIP ANGLES w/ (3) #8 SCREWS EA STUD & (2) PDP'S TO SLAB EDGE 3" 3" 4" 1" CFS INFILL STUD BTWN PRECAST PANELS
