Structural · S-7R3DC

Composite Beam Perpendicular

Materials

Concrete Steel Timber / Wood Composite

Elements

Columns Beams Roofs Floors / Slabs Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

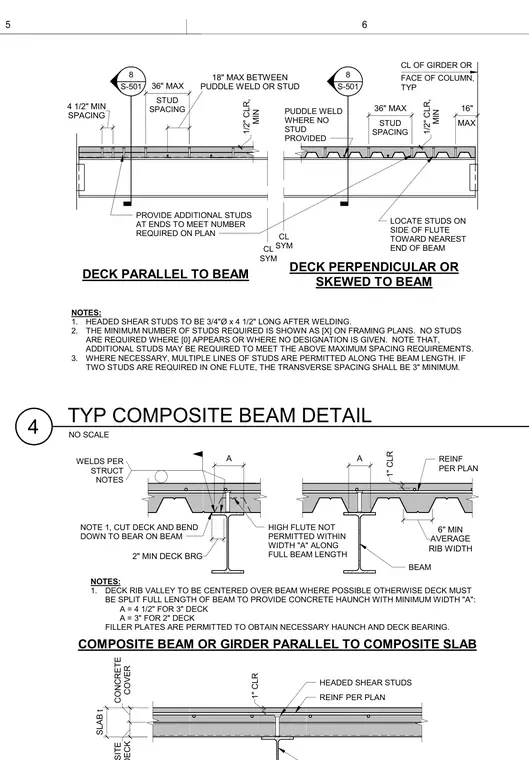

Headed shear studs measure three-quarters of an inch in diameter by four and one-half inches long after welding, placed at a maximum spacing of thirty-six inches with a four and one-half inch minimum. Puddle welds or studs are spaced up to eighteen inches maximum between connections. The concrete slab features a minimum six-inch average rib width and one-inch clearance, with haunch widths sized at four and one-half inches for three-inch decks and three inches for two-inch decks. Filler plates are permitted to achieve necessary haunch and deck bearing.
