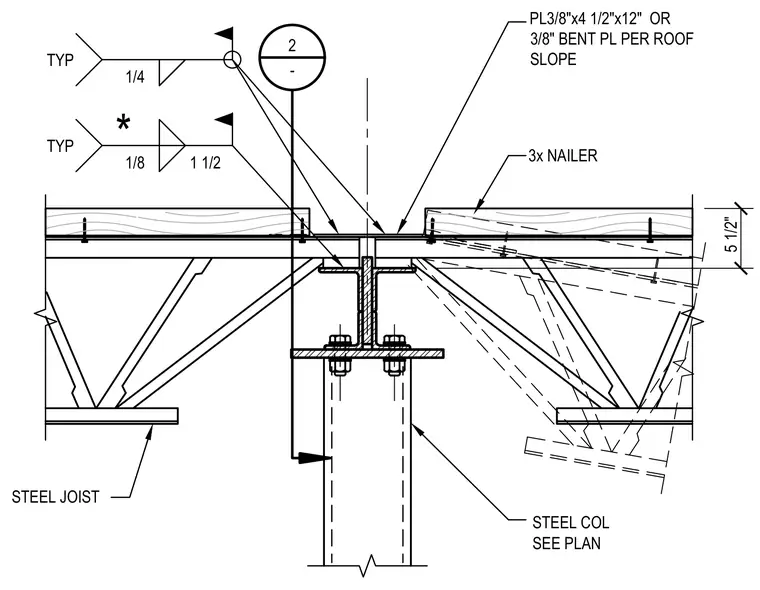

Steel open-web joists bear on a steel column sized per plan, secured with a three-eighths-inch plate measuring four and one-half inches by twelve inches or a three-eighths-inch bent plate per roof slope. A three-by wood nailer is attached above with anchor bolts. Welds include one-quarter-inch and one-eighth-inch typical fillet welds with field weld indicators. The steel column features a top bearing plate connected with anchor bolts.
PL3/8"x4 1/2"x12" OR 3/8" BENT PL PER ROOF SLOPE STEEL COL SEE PLAN * 5 1/2" 2 - 1/4 TYP 1/8 1 1/2 TYP STEEL JOIST 3x NAILER
