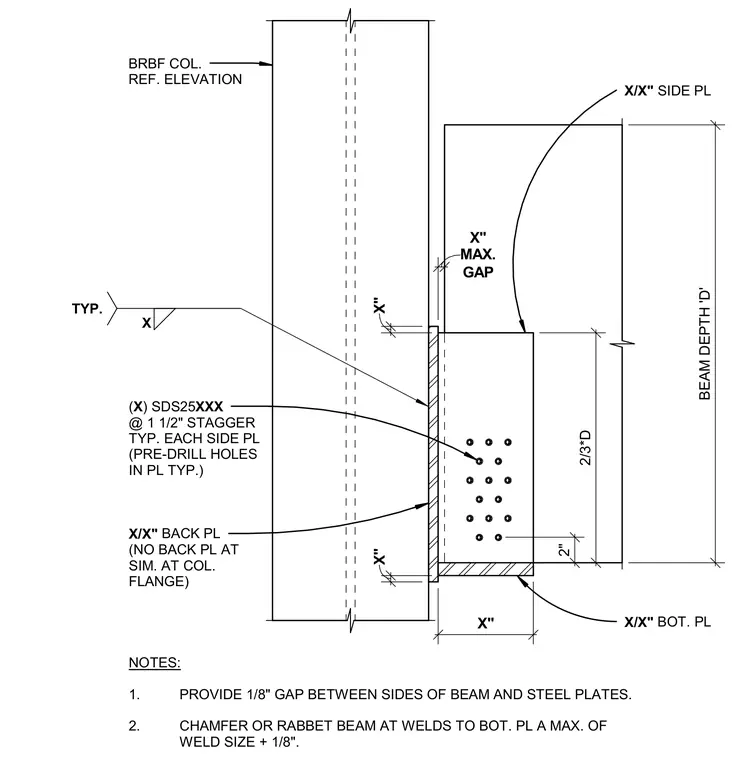

A structural steel beam connects to a buckling-restrained braced frame column using side plates and a bottom plate. The beam depth 'D' is flanked by side plates secured with pre-drilled bolts typically spaced at one and one-half inches staggered on each side plate. A back plate is included, though omitted at similar conditions at the column flange, and a bottom plate provides bearing support. A one-eighth-inch gap is provided between the sides of the beam and the steel plates, and the beam is chamfered or rabbeted at the welds to the bottom plate a maximum of the weld size plus one-eighth of an inch.
2" 2/3*D BEAM DEPTH 'D' X" X" X/X" SIDE PL X" GAP X" MAX. BRBF COL. REF. ELEVATION ( X ) SDS25 XXX @ 1 1/2" STAGGER TYP. EACH SIDE PL (PRE-DRILL HOLES IN PL TYP.) X/X" BACK PL (NO BACK PL AT SIM. AT COL. FLANGE) X/X" BOT. PL X TYP. NOTES: 1. PROVIDE 1/8" GAP BETWEEN SIDES OF BEAM AND STEEL PLATES. 2. CHAMFER OR RABBET BEAM AT WELDS TO BOT. PL A MAX. OF WELD SIZE + 1/8".
