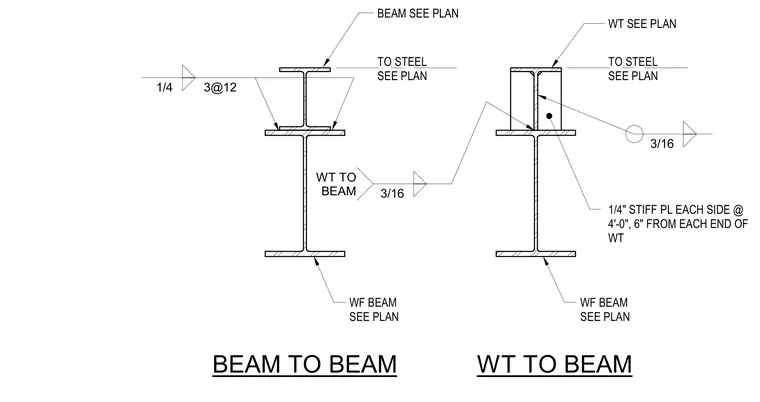

A WT structural shape frames into the top flange of a wide flange beam, secured with a three-quarter inch fillet weld spaced at twelve inches on center. Quarter-inch stiffener plates are welded to each side of the WT web at four-foot intervals, beginning six inches from each end. The WT section and wide flange beam sizes are sized per structural plans.
BEAM TO BEAM WT TO BEAM WF BEAM SEE PLAN WF BEAM SEE PLAN BEAM SEE PLAN TO STEEL SEE PLAN 1/4" STIFF PL EACH SIDE @ 4'-0", 6" FROM EACH END OF WT TO STEEL SEE PLAN WT SEE PLAN 3/16 3/16 WT TO BEAM 1/4 3@12
