Suspended hangers and seismic bracing attach to wide-flange steel framing beneath a concrete fill over metal deck or bare metal deck. Hangers feature a machine bolt and fitting located clear of the k distance, accommodating a maximum offset hanging load of fifty pounds or a maximum concentric hanging load of six hundred fifty pounds. Seismic bracing connects to the web of the wide-flange beam while leaving the flange itself unattached except where expressly indicated.

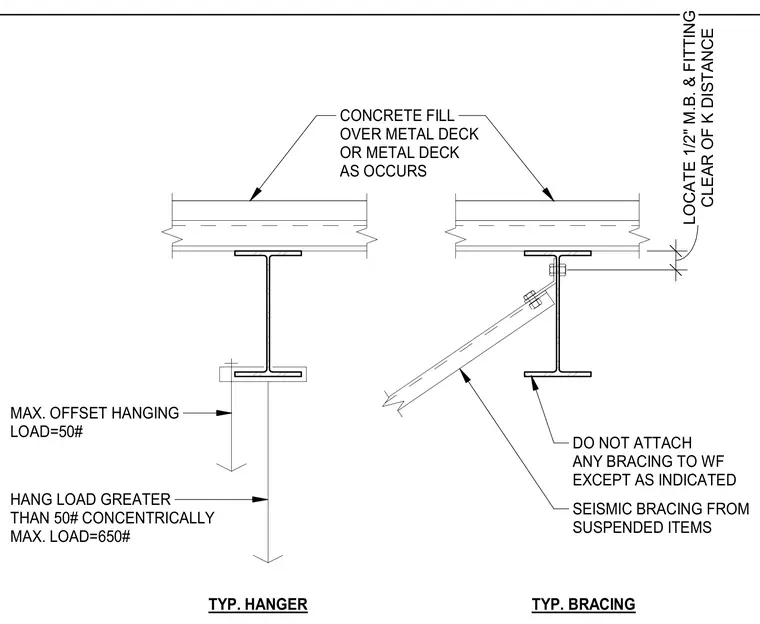

CLEAR OF K DISTANCE LOCATE 1/2" M.B. & FITTING TYP. HANGER TYP. BRACING CONCRETE FILL OVER METAL DECK OR METAL DECK AS OCCURS DO NOT ATTACH ANY BRACING TO WF EXCEPT AS INDICATED SEISMIC BRACING FROM SUSPENDED ITEMS MAX. OFFSET HANGING LOAD=50# HANG LOAD GREATER THAN 50# CONCENTRICALLY MAX. LOAD=650#
