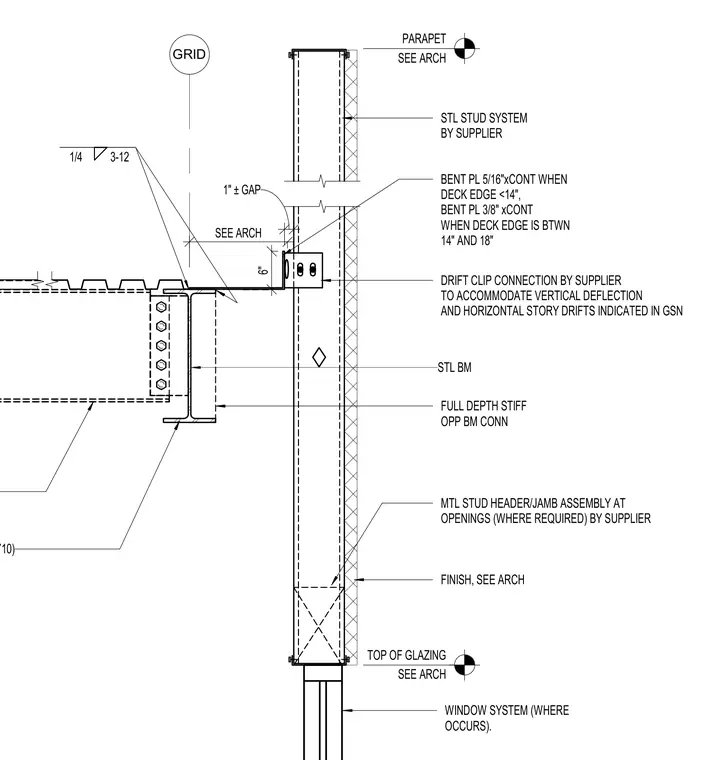

A structural steel beam supports the floor deck with a bolted connection, featuring a full-depth stiffener plate opposite the beam connection. A continuous bent plate provides edge support, sized at 5/16-inch thick when the deck edge is less than 14 inches and 3/8-inch thick when between 14 and 18 inches. A supplier-provided drift clip connection accommodates vertical deflection and horizontal story drifts. A steel stud system extends upward to the parapet and downward past the window head, maintaining a 1-inch gap from the structural edge.
STL BM PARAPET SEE ARCH TOP OF GLAZING SEE ARCH WINDOW SYSTEM (WHERE OCCURS). STL STUD SYSTEM BY SUPPLIER GRID 1" ± GAP FINISH, SEE ARCH FULL DEPTH STIFF OPP BM CONN BENT PL 5/16"xCONT WHEN DECK EDGE <14", BENT PL 3/8" xCONT WHEN DECK EDGE IS BTWN 14" AND 18" 6" SEE ARCH DRIFT CLIP CONNECTION BY SUPPLIER TO ACCOMMODATE VERTICAL DEFLECTION AND HORIZONTAL STORY DRIFTS INDICATED IN GSN MTL STUD HEADER/JAMB ASSEMBLY AT OPENINGS (WHERE REQUIRED) BY SUPPLIER 1/4 3-12 S710)
