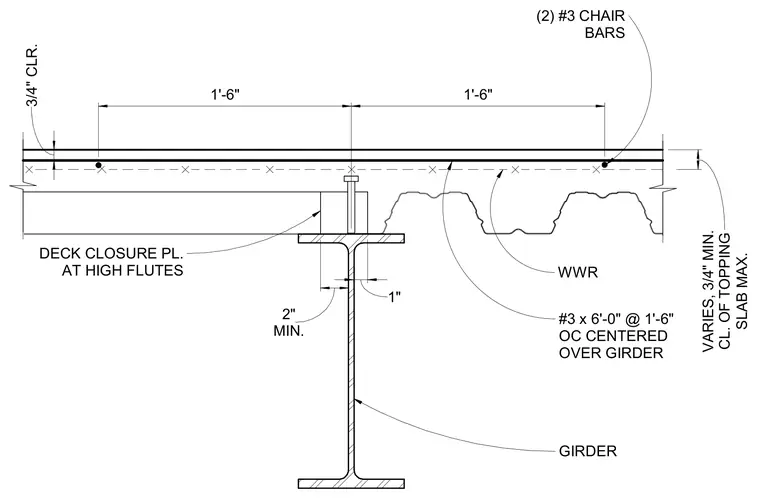

A structural steel girder supports a concrete-filled metal deck featuring a discontinuity at the framing line. Welded wire reinforcement and three-gauge chair bars reinforce the concrete topping across the span. Deck closure plates seal the high flutes of the metal deck at the girder bearing condition. The slab provides a three-quarter inch minimum clearance over the top of the topping with varying maximum thickness.
WWR #3 x 6'-0" @ 1'-6" OC CENTERED OVER GIRDER GIRDER (2) #3 CHAIR BARS DECK CLOSURE PL. AT HIGH FLUTES MIN. 2" 3/4" CLR. SLAB MAX. VARIES, 3/4" MIN. CL. OF TOPPING 1'-6" 1'-6" 1"
