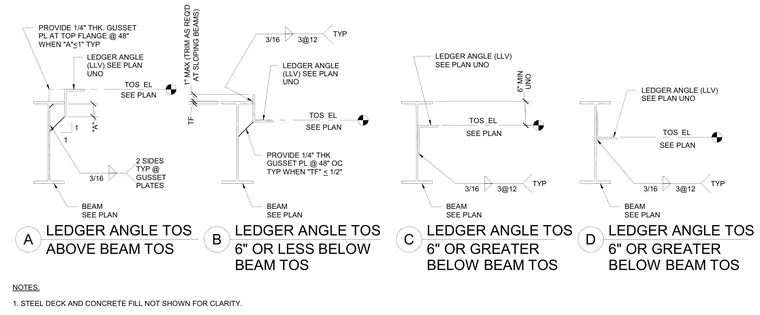

Ledger angles are welded to structural steel beams with varying vertical elevations relative to the top of steel, using 3/16-inch fillet welds spaced at 12 inches on center typically. When dimension "A" is 1 inch or less or flange thickness is less than or equal to 1/2 inch, 1/4-inch thick gusset plates are provided at 48 inches on center with 3/16-inch welds on two sides. Steel deck and concrete fill are omitted for clarity. Ledger angle size and top of steel elevations are sized per plan unless noted otherwise.
1 1 6" OR LESS BELOW BEAM TOS LEDGER ANGLE TOS LEDGER ANGLE TOS A B LEDGER ANGLE TOS LEDGER ANGLE TOS 6" OR GREATER BELOW BEAM TOS C D SEE PLAN TOS EL PROVIDE 1/4" THK GUSSET PL @ 48" OC TYP WHEN "TF" < 1/2" SEE PLAN TOS EL LEDGER ANGLE (LLV) SEE PLAN UNO PROVIDE 1/4" THK. GUSSET PL AT TOP FLANGE @ 48" WHEN "A"<1" TYP TOS EL SEE PLAN TOS EL SEE PLAN NOTES: 1. STEEL DECK AND CONCRETE FILL NOT SHOWN FOR CLARITY. LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN LEDGER ANGLE (LLV) SEE PLAN UNO LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 6" OR GREATER BELOW BEAM TOS TF AT SLOPING BEAMS) 1" MAX (TRIM AS REQ'D UNO 6" MIN ABOVE BEAM TOS "A" 3/16 2 SIDES TYP @ GUSSET PLATES 3/16 3@12 TYP 3/16 3@12 TYP 3/16 3@12 TYP
