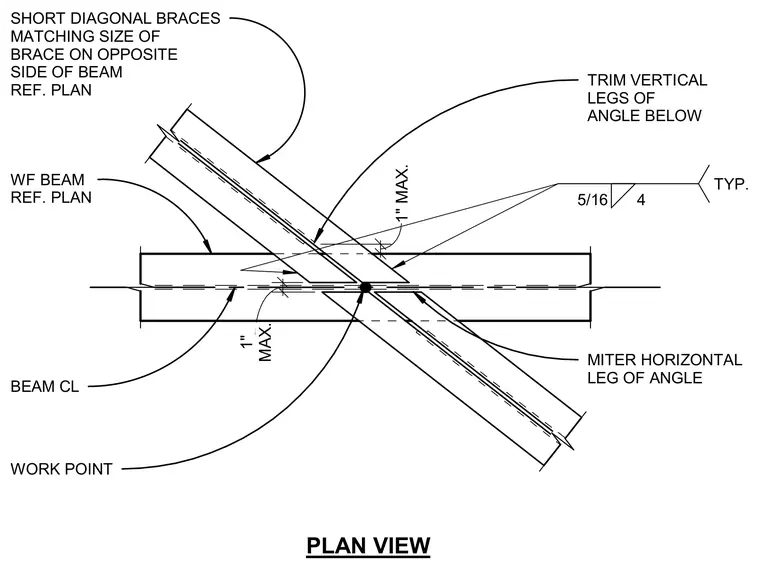

Short diagonal braces intersect at a wide flange beam with a defined work point along the beam centerline. The horizontal leg of the angle is mitered while the vertical legs below are trimmed. A five-sixteenths inch fillet weld with a length of four inches is specified typically. Maximum one-inch clearances are maintained at the intersection.
MITER HORIZONTAL LEG OF ANGLE TRIM VERTICAL LEGS OF ANGLE BELOW WORK POINT SHORT DIAGONAL BRACES MATCHING SIZE OF BRACE ON OPPOSITE SIDE OF BEAM REF. PLAN WF BEAM REF. PLAN 5/16 4 TYP. 1" MAX. BEAM CL MAX. 1" PLAN VIEW
