Precast concrete tilt-up wall panels anchor to concrete footings using Connect-EZ PA-EX footing connectors fastened with three-quarter-inch diameter by ten-inch Titen HD anchor bolts. A one-and-one-half-inch layer of non-shrink grout fills the gap beneath the wall panel over the footing. Panel joints include designated sealant per architectural drawings. Installation follows specific spacing notes for panel ends and intermediate connections.

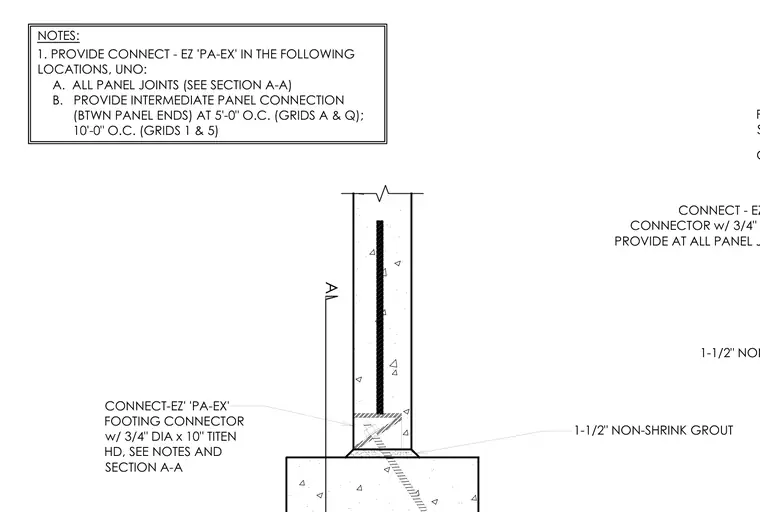

PANEL JOINT AND SEALANT, SEE ARCH CONC TILT-UP PANEL CONNECT - EZ 'PA'-EX' FOOTING CONNECTOR w/ 3/4" DIA x 10" TITEN HD, PROVIDE AT ALL PANEL JOINTS (SEE NOTES) 1-1/2" NON-SHRINK GROUT 1-1/2" NON-SHRINK GROUT CONNECT-EZ' 'PA-EX' FOOTING CONNECTOR w/ 3/4" DIA x 10" TITEN HD, SEE NOTES AND SECTION A-A 1. PROVIDE CONNECT - EZ 'PA-EX' IN THE FOLLOWING LOCATIONS, UNO: A. ALL PANEL JOINTS (SEE SECTION A-A) B. PROVIDE INTERMEDIATE PANEL CONNECTION (BTWN PANEL ENDS) AT 5'-0" O.C. (GRIDS A & Q); 10'-0" O.C. (GRIDS 1 & 5) NOTES: A b A 1 b >y b '.! ! ' ■ m bib A A ' b A >v ! »A A' b
