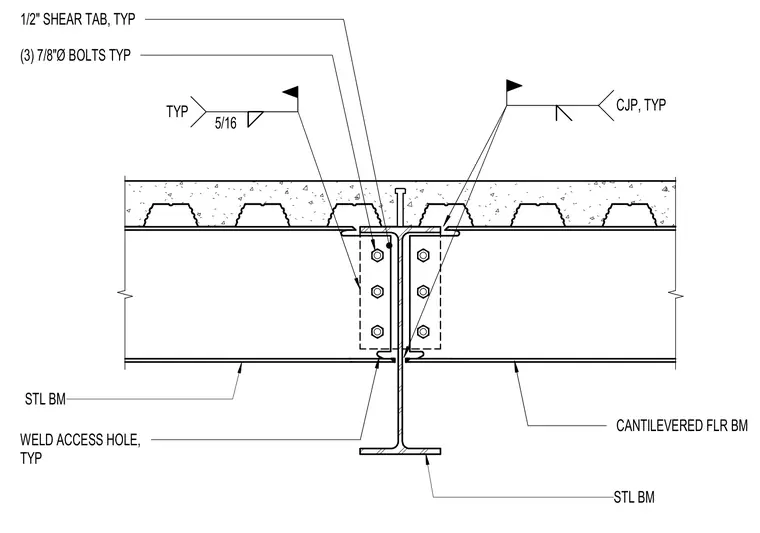

A cantilevered steel floor beam connects to the web of a supporting steel beam using a one-half-inch shear tab. Three seven-eighths-inch diameter high-strength bolts secure the web of the framing beam to the shear tab on each side. A five-sixteenths-inch fillet weld attaches the shear tab to the supporting member. Complete joint penetration welds and standard weld access holes are provided at the beam flanges.
CANTILEVERED FLR BM STL BM (3) 7/8"Ø BOLTS TYP 1/2" SHEAR TAB, TYP WELD ACCESS HOLE, TYP STL BM CJP, TYP 5/16 TYP
