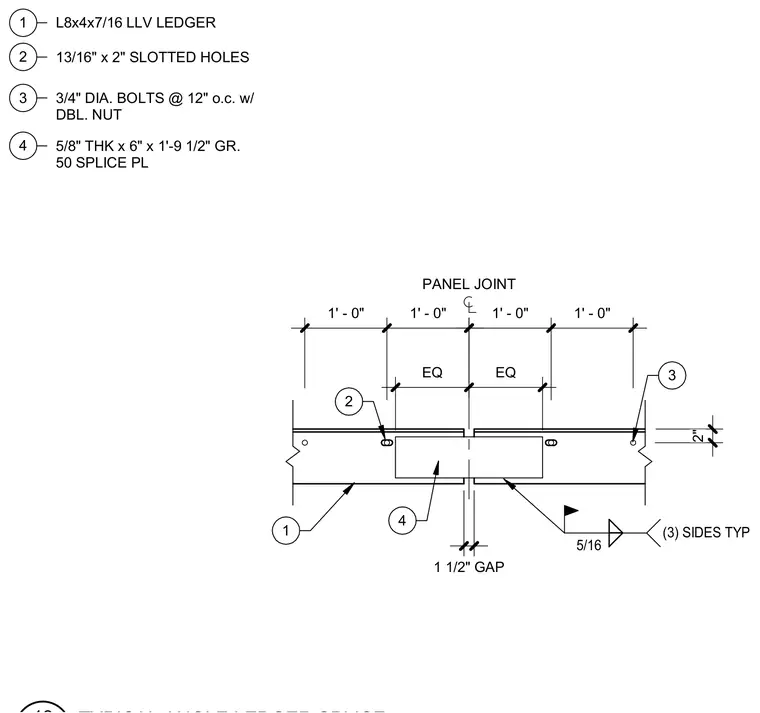

Two structural angle ledgers are joined across a one and one-half inch panel joint with a five-eighths inch thick by six inch by one foot nine and one-half inch Grade fifty splice plate. The assembly features thirteen-sixteenths by two inch slotted holes and three-quarter inch diameter bolts at twelve inches on center with double nuts. A five-sixteenths inch fillet weld is applied to three sides typical.
1 L8x4x7/16 LLV LEDGER 1 2 13/16" x 2" SLOTTED HOLES 3 3/4" DIA. BOLTS @ 12" o.c. w/ DBL. NUT 1' - 0" 1' - 0" 2" 1' - 0" 1' - 0" 4 5/8" THK x 6" x 1'-9 1/2" GR. 50 SPLICE PL 5/16 (3) SIDES TYP EQ EQ 1 1/2" GAP PANEL JOINT 2 3 4
