Structural · S-7PJ4W

Slab Edge Cantilever Kicker and Edge Angle Support Detail

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Columns Walls Curtain Walls Facades / Cladding Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

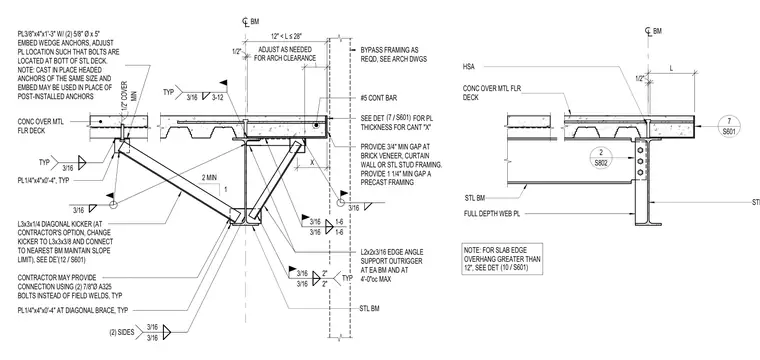

A concrete over metal floor deck cantilever is supported by a steel beam and stabilized with a diagonal kicker brace. The concrete slab edge features an L2x2x3/16 edge angle supporting an outrigger at each beam and at four-foot-zero-inch centers maximum. A diagonal kicker of L3x3x1/4 angle connects from the lower flange of the supporting beam back to the underside of the deck using a 3/8-inch by 4-inch by 1-foot 3-inch plate with two 5/8-inch diameter by 5-inch embedded wedge anchors. Fillet welds of 3/16-inch size are specified at the connections, with an option for the contractor to provide a bolted connection using two 7/8-inch diameter A325 bolts instead of field welds at the brace. A continuous number five reinforcing bar runs within the slab, and specific minimum gaps of 3/4-inch to 1-1/4-inch are maintained for exterior finishes such as brick veneer, curtain wall, steel stud framing, or precast framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
