Typical Deck Edge Conditions

Materials

Elements

About this detail

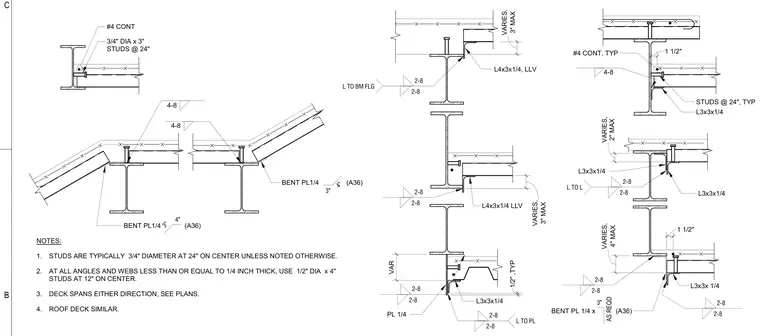

Steel deck edge conditions feature structural steel framing supporting metal floor or roof decks with concrete fill. Studs are typically 3/4 inch diameter spaced at 24 inches on center, while angles and webs less than or equal to 1/4 inch thick use 1/2 inch diameter by 4 inch studs at 12 inches on center. Continuous reinforcing bars are tied along the deck edges with bent plates and structural angles including L4x3x1/4 and L3x3x1/4 sections in A36 steel. Welds connect the angles to beam flanges and plates as specified by the engineering details. Roof deck conditions follow similar framing configurations.
