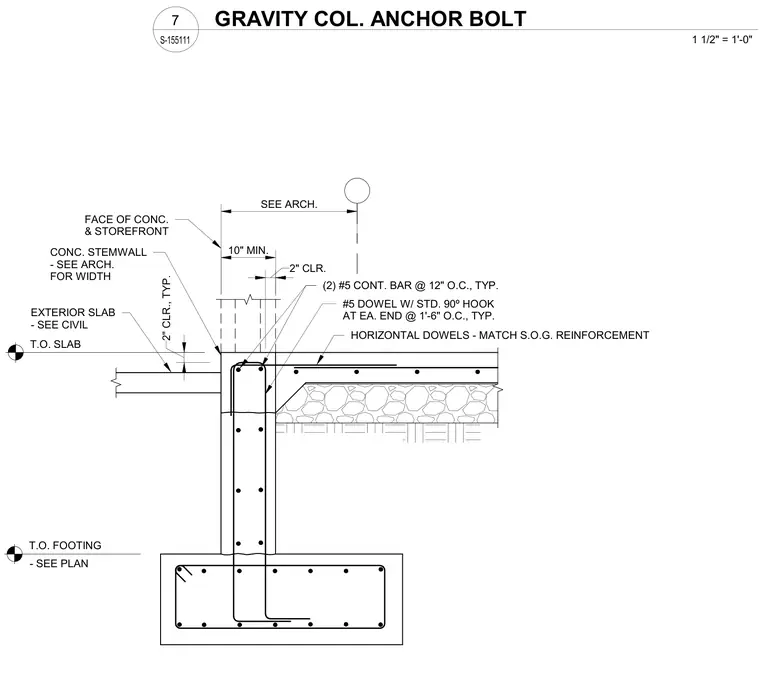

A concrete stemwall rests on a continuous concrete footing with top of footing elevation sized per plan. The stemwall features two continuous number five bars at twelve inches on center typically, alongside number five dowels with standard ninety-degree hooks at each end spaced at one foot six inches on center typically. Horizontal dowels match the slab-on-grade reinforcement. The exterior slab connects to the stemwall with a two-inch clearance typically, aligning with the face of concrete and storefront as shown on architectural drawings.
SEE ARCH. FACE OF CONC. & STOREFRONT CONC. STEMWALL - SEE ARCH. FOR WIDTH T.O. FOOTING - SEE PLAN T.O. SLAB (2) #5 CONT. BAR @ 12" O.C., TYP. #5 DOWEL W/ STD. 90º HOOK AT EA. END @ 1'-6" O.C., TYP. 10" MIN. 2" CLR., TYP. EXTERIOR SLAB - SEE CIVIL 2" CLR. HORIZONTAL DOWELS - MATCH S.O.G. REINFORCEMENT S-155111 1 1/2" = 1'-0" 7 GRAVITY COL. ANCHOR BOLT
