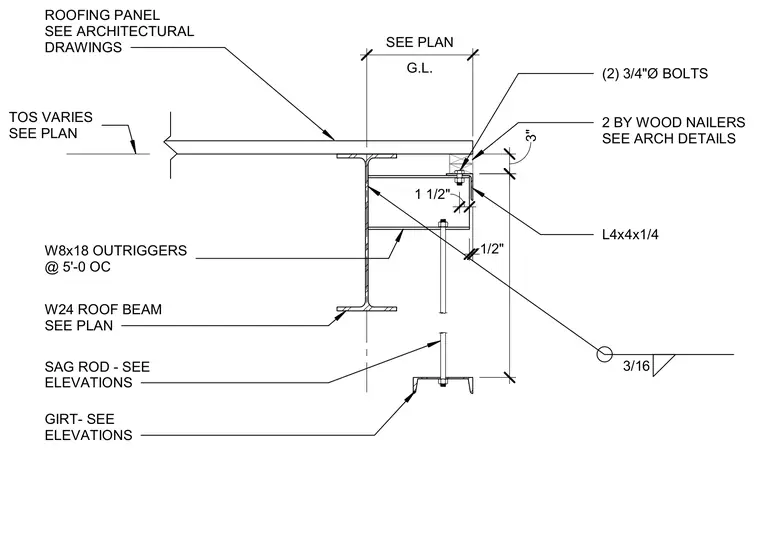

Outrigger framing is supported by a W24 roof beam with an L4x4x1/4 structural angle connection welded with a three-sixteenths inch fillet weld. Two three-quarters inch diameter bolts secure the assembly to a two-by wood nailer located at the roof edge. W8x18 outriggers span at five feet on center to support the roofing panel assembly. A vertical sag rod connects to a lower girt as detailed on the elevations.
3" W8x18 OUTRIGGERS @ 5'-0 OC L4x4x1/4 TOS VARIES SEE PLAN ROOFING PANEL SEE ARCHITECTURAL DRAWINGS W24 ROOF BEAM SEE PLAN G.L. SEE PLAN 1/2" 3/16 GIRT- SEE ELEVATIONS SAG ROD - SEE ELEVATIONS 2 BY WOOD NAILERS SEE ARCH DETAILS 1 1/2" (2) 3/4"Ø BOLTS
