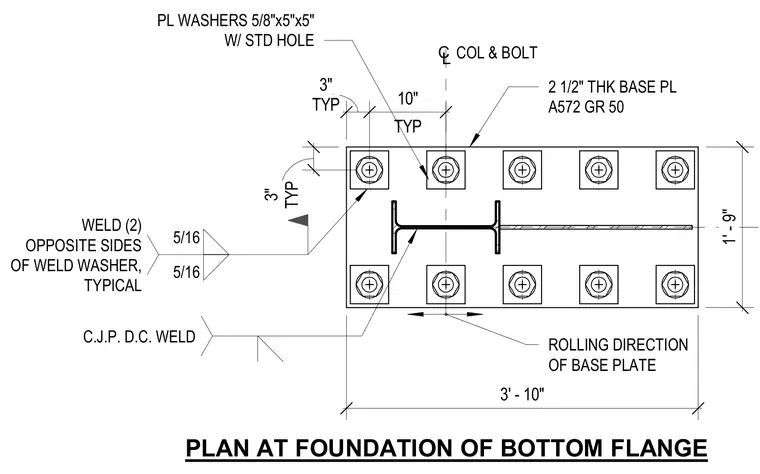

This structural plan view details a heavy steel column base plate measuring 3 feet 10 inches by 1 foot 9 inches, fabricated from 2 1/2-inch thick ASTM A572 Grade 50 steel. The layout includes ten anchor bolt locations with 5/8-inch by 5-inch by 5-inch plate washers featuring standard holes. Two opposite sides of each weld washer are secured with 5/16-inch fillet welds. A complete joint penetration direct current weld is specified at the column flange, and the rolling direction of the base plate is indicated.
3' - 10" 1' - 9" TYP 3" TYP 10" TYP 3" CL COL & BOLT 2 1/2" THK BASE PL A572 GR 50 PL WASHERS 5/8"x5"x5" W/ STD HOLE C.J.P. D.C. WELD ROLLING DIRECTION OF BASE PLATE PLAN AT FOUNDATION OF BOTTOM FLANGE 5/16 5/16 WELD (2) OPPOSITE SIDES OF WELD WASHER, TYPICAL
