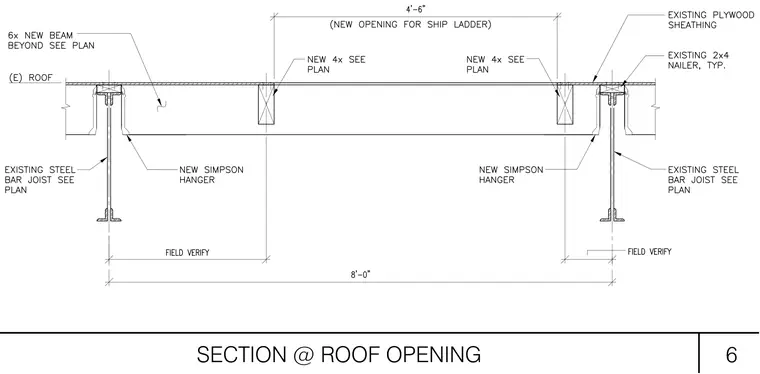

A four-foot six-inch new opening for a ship ladder is framed within an existing roof assembly consisting of existing plywood sheathing and existing two-by-four nailers typically. New four-by lumber sized per plan frames the opening perimeter. New Simpson hangers support the framing off existing steel bar joists sized per plan. New six-inch beams beyond are located per plan.
