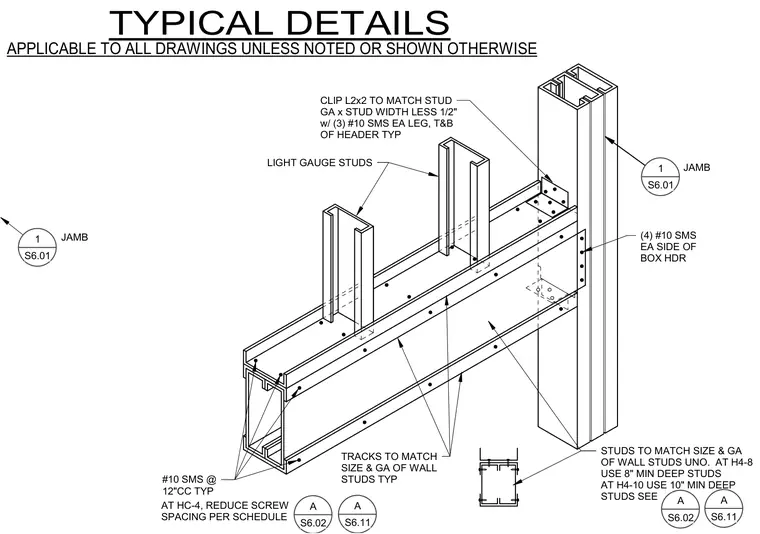

Light gauge steel box headers connect to jamb studs using an L2x2 clip angle matched to the stud gauge and width, fastened with three number ten sheet metal screws on each leg at the top and bottom of the header. Box header tracks match the size and gauge of the wall studs unless noted otherwise. Jamb studs consist of paired light gauge studs secured with four number ten sheet metal screws on each side of the box header. Screw spacing is set at twelve inches on center typically, with reduced spacing applied at specific conditions.
JAMB 1 S6.01 LIGHT GAUGE STUDS (4) #10 SMS EA SIDE OF BOX HDR TRACKS TO MATCH SIZE & GA OF WALL STUDS TYP STUDS TO MATCH SIZE & GA OF WALL STUDS UNO. AT H4-8 USE 8" MIN DEEP STUDS AT H4-10 USE 10" MIN DEEP STUDS SEE CLIP L2x2 TO MATCH STUD GA x STUD WIDTH LESS 1/2" w/ (3) #10 SMS EA LEG, T&B OF HEADER TYP #10 SMS @ 12"CC TYP AT HC-4, REDUCE SCREW SPACING PER SCHEDULE JAMB 1 S6.01 A S6.02 A S6.02 A S6.11 A S6.11 APPLICABLE TO ALL DRAWINGS UNLESS NOTED OR SHOWN OTHERWISE TYPICAL DETAILS
