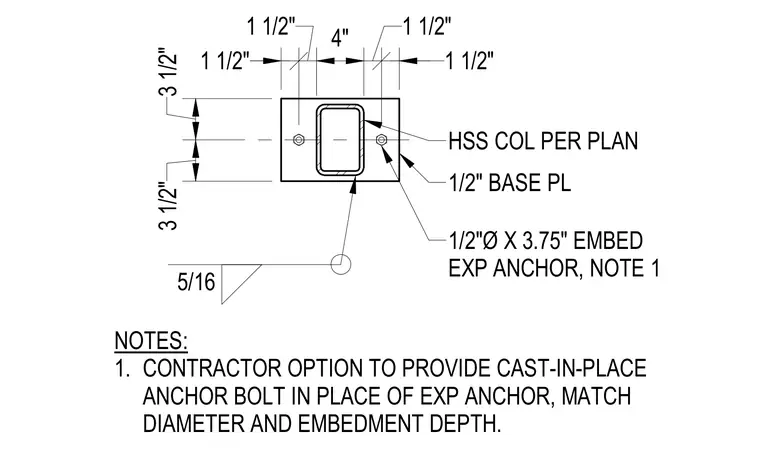

A hollow structural section column is welded to a half-inch base plate with a five-sixteenths fillet weld. The assembly is secured using half-inch diameter by three-and-three-quarter-inch embedment expansion anchors. A contractor option permits substituting cast-in-place anchor bolts matching the diameter and embedment depth.
1/2" BASE PL HSS COL PER PLAN 5/16 1/2"Ø X 3.75" EMBED EXP ANCHOR, NOTE 1 NOTES: 1. CONTRACTOR OPTION TO PROVIDE CAST-IN-PLACE ANCHOR BOLT IN PLACE OF EXP ANCHOR, MATCH DIAMETER AND EMBEDMENT DEPTH. 1 1/2" 1 1/2" 4" 1 1/2" 1 1/2" 3 1/2" 3 1/2"
