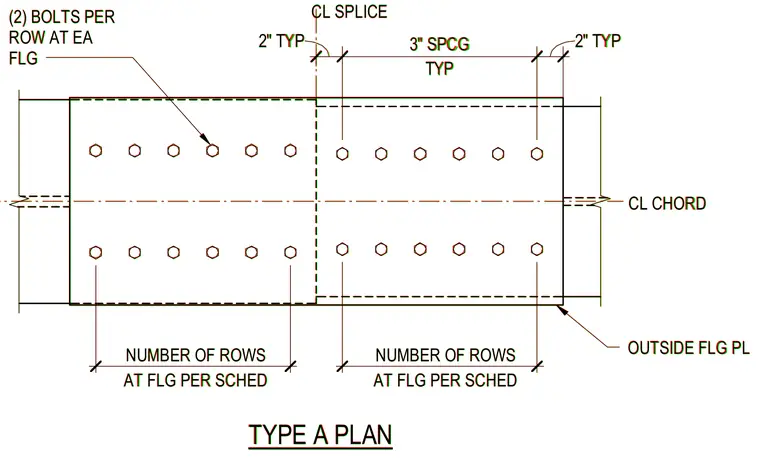

A Type A chord flange splice connection incorporates outside flange plates. Two bolts per row are provided at each flange with a three-inch typical spacing. The centerline of the splice is flanked by two-inch edge dimensions and fifteen-inch spacing dimensions as specified per the schedule. The number of rows at the flange corresponds to the structural schedule.
TYPE A PLAN CL SPLICE (2) BOLTS PER ROW AT EA FLG NUMBER OF ROWS OUTSIDE FLG PL 2" TYP TYP 3" SPCG 2" TYP 15" 15" CL CHORD AT FLG PER SCHED NUMBER OF ROWS AT FLG PER SCHED TYPE A PLAN CL SPLICE (2) BOLTS PER ROW AT EA FLG NUMBER OF ROWS OUTSIDE FLG PL 2" TYP TYP 3" SPCG 2" TYP 15" 15" CL CHORD AT FLG PER SCHED NUMBER OF ROWS AT FLG PER SCHED
