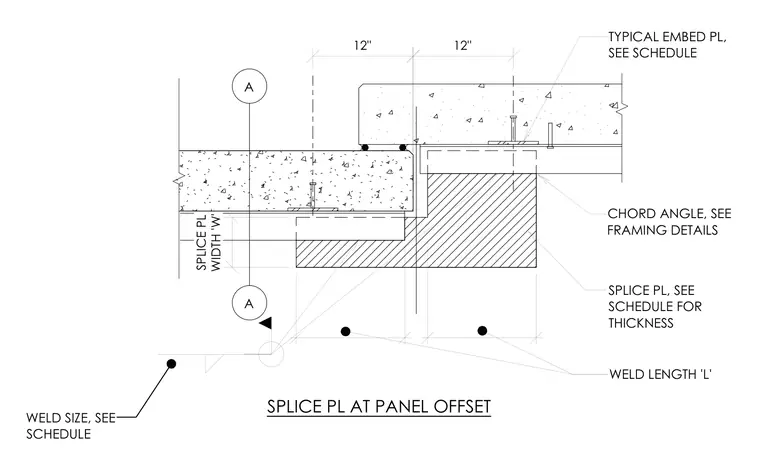

A splice plate connects offset precast concrete panels with thickness and width sized per the engineering schedule. A chord angle supports the panel edge per framing details, bearing on an embedded plate anchored into the concrete. A weld length L and weld size are specified per the schedule for the structural steel connection. The panel offset detail maintains structural continuity across elevation changes in the precast wall or floor system.
A A SPLICE PL AT PANEL OFFSET 12" 12" SPLICE PL WIDTH 'W' WELD SIZE, SEE SCHEDULE CHORD ANGLE, SEE FRAMING DETAILS TYPICAL EMBED PL, SEE SCHEDULE SPLICE PL, SEE SCHEDULE FOR THICKNESS WELD LENGTH 'L'
