Structural · S-7N79K

Strut Connection to Concrete and Steel Beam

Materials

Concrete Steel Masonry / CMU

Elements

Beams Connections / Plates Reinforcing

Connections

Welded Connection Bolted Connection

About this detail

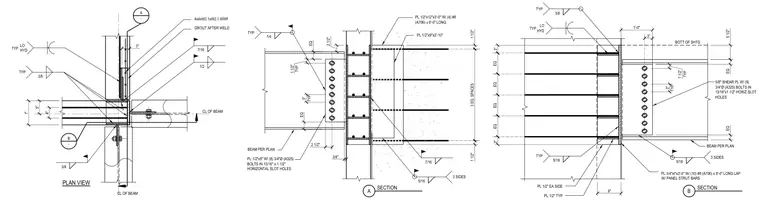

A structural detail links a steel beam to a concrete wall or column element using embedded steel plates, shear tabs, and reinforcing bars. The connection incorporates a 5/8-inch shear plate secured with nine 3/4-inch diameter A325 bolts in 13/16-inch by 1-1/2-inch horizontal slotted holes. Additional anchorage is provided by embedded plates measuring 1/2-inch by 9-inch by 2'-10" with four #8 A706 reinforcing bars at 6'-0" long, and a 3/4-inch thick plate with ten #8 A706 bars at 8'-0" long lapped with panel strut bars. Low-hydrogen welding with typical 3/8-inch, 5/16-inch, 7/16-inch, and 1/2-inch fillet welds connects the steel plates to the structural elements. Welded wire fabric (4x4-W2.1xW2.1 WWF) and subsequent grout infill are applied at the joint as specified.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
