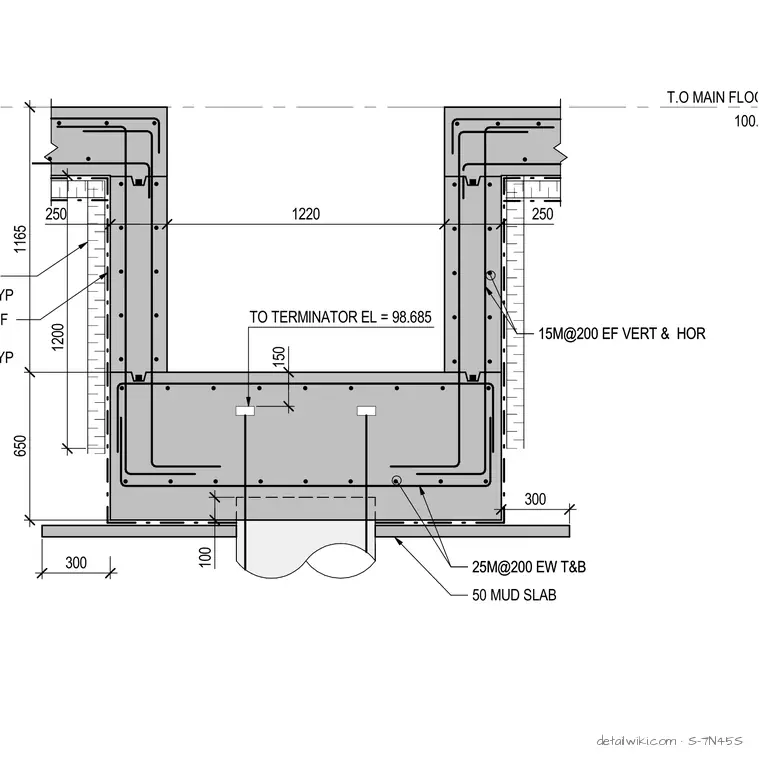

A reinforced concrete paint booth tunnel section sits on a fifty-millimeter mud slab. The base slab features twenty-five millimeter reinforcing bars at two hundred millimeter spacing each way top and bottom, supporting vertical concrete walls with fifteen millimeter reinforcing bars at two hundred millimeter spacing each face vertically and horizontally. The tunnel walls measure twelve hundred millimeters in height and twenty-five millimeters in thickness, with waterproofing applied per architectural specifications. The top of the main floor is established at elevation 100.00, and a terminator is located at elevation 98.685 with a one hundred fifty millimeter clearance.
T.O MAIN FLOOR 100.00 650 1165 250 1220 250 100 25M@200 EW T&B 25M@200 EW T&B 15M@200 EF VERT & HOR 15M@200 EF VERT & HOR SEE ARCH, TYP WATERPROOF SEE ARCH, TYP TO TERMINATOR EL = 98.685 150 50 MUD SLAB 300 1200 300
