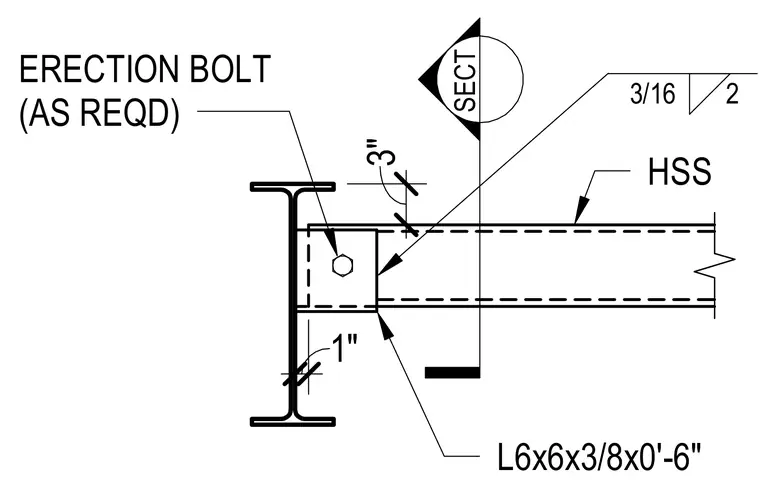

A hollow structural section member connects to a structural steel column flange using a 6x6x3/8 inch structural angle that is six inches long. An erection bolt as required is installed through the connection. A three-sixteenths inch fillet weld secures the assembly.
