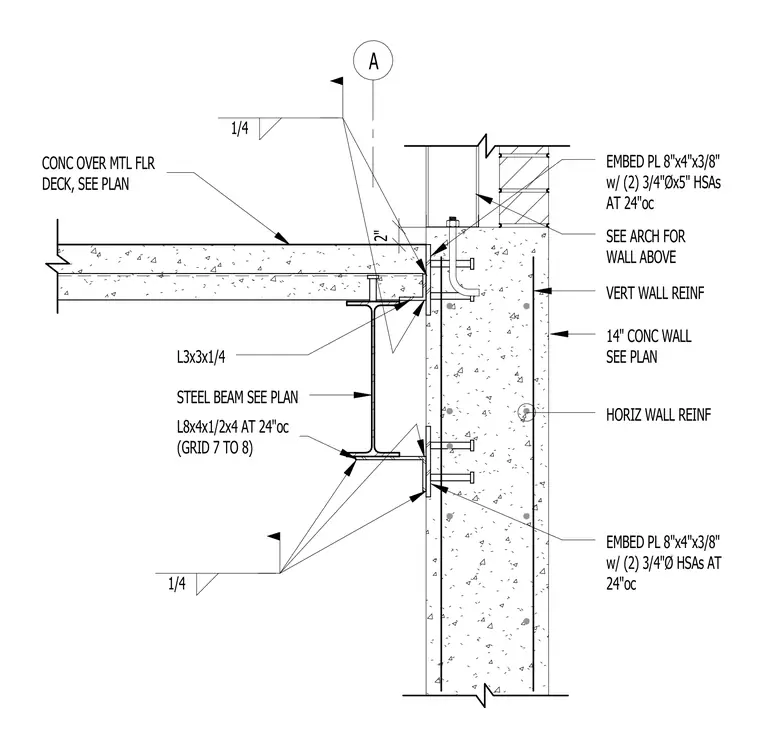

A structural steel beam frames into a fourteen-inch concrete wall with vertical and horizontal reinforcing. An embed plate measuring eight by four by three-eighths inches with two three-quarter-inch diameter headed stud anchors at twenty-four inches on center is cast into the wall to receive the steel framing. A top angle measuring three by three by one-quarter inches connects the steel beam to the embed plate, supplemented by a bottom angle measuring eight by four by one-half by four inches spaced at twenty-four inches on center along grids seven to eight. Fillet welds of one-quarter-inch size secure the steel connections. Concrete over metal floor deck bears adjacent to the wall assembly.
L3x3x1/4 STEEL BEAM SEE PLAN EMBED PL 8"x4"x3/8" w/ (2) 3/4"Øx5" HSAs AT 24"oc CONC OVER MTL FLR DECK, SEE PLAN 14" CONC WALL SEE PLAN SEE ARCH FOR WALL ABOVE A 1/4 HORIZ WALL REINF VERT WALL REINF EMBED PL 8"x4"x3/8" w/ (2) 3/4"Ø HSAs AT 24"oc L8x4x1/2x4 AT 24"oc (GRID 7 TO 8) 1/4 2"
