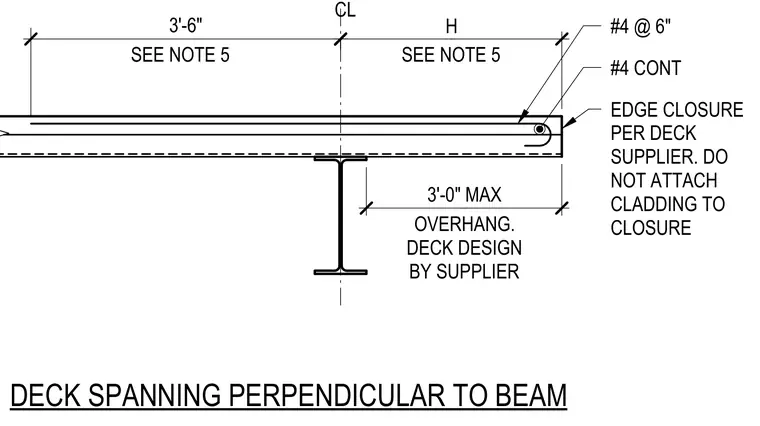

A metal deck and concrete slab span perpendicular across a supporting steel beam with a maximum three-foot overhang. A continuous number four reinforcing bar runs along the edge inside a continuous edge closure provided per the deck supplier. Transverse reinforcement consists of number four bars spaced at six inches on center. Cladding attachment to the edge closure is explicitly prohibited.
DECK SPANNING PERPENDICULAR TO BEAM CL 30" 3'-6" SEE NOTE 5 SEE NOTE 5 H #4 @ 6" 26 1/2" 3'-0" MAX OVERHANG. DECK DESIGN BY SUPPLIER #4 CONT EDGE CLOSURE PER DECK SUPPLIER. DO NOT ATTACH CLADDING TO CLOSURE
