A beam-to-column flange connection accommodates beams framing in at different depths or elevations. The shear tab thickness is equal to the beam web thickness plus one-quarter inch, fastened with a vertical row of bolts sized per plan and a second row of bolts as required. Continuity plates are installed at the top and bottom flanges, utilizing the larger of flange thickness TF1 or TF2. A sloped bottom plate is provided when the elevation difference is less than three inches.

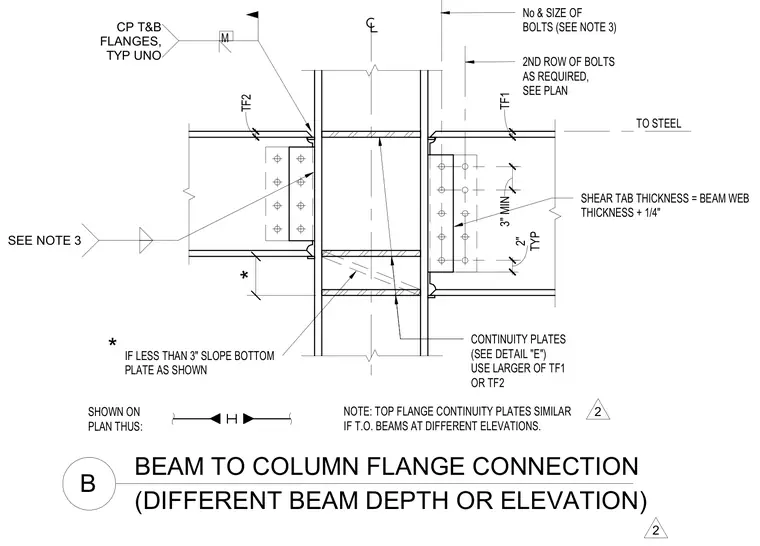

BEAM TO COLUMN FLANGE CONNECTION (DIFFERENT BEAM DEPTH OR ELEVATION) B TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN IF LESS THAN 3" SLOPE BOTTOM PLATE AS SHOWN CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" * SHOWN ON PLAN THUS: * 3" MIN TYP 2" TF2 TF1 CP T&B FLANGES, TYP UNO M SEE NOTE 3 2 NOTE: TOP FLANGE CONTINUITY PLATES SIMILAR IF T.O. BEAMS AT DIFFERENT ELEVATIONS. 2
