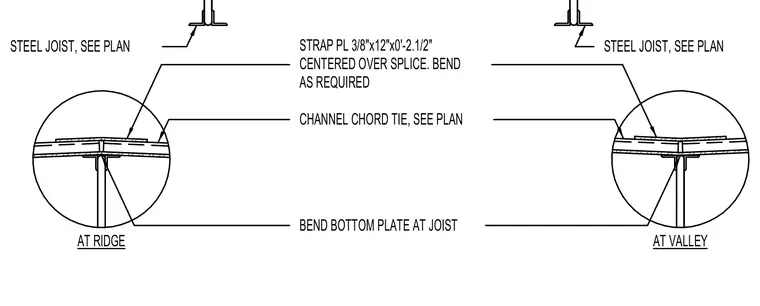

A channel chord tie is positioned across the steel joists sized per plan at both ridge and valley conditions. A 3/8-inch by 12-inch by 2-1/2-inch strap plate is centered over the splice and bent as required. The bottom plate is bent at the joist connection.
AT RIDGE AT VALLEY STEEL JOIST, SEE PLAN STEEL JOIST, SEE PLAN STRAP PL 3/8"x12"x0'-2.1/2" CENTERED OVER SPLICE. BEND AS REQUIRED CHANNEL CHORD TIE, SEE PLAN BEND BOTTOM PLATE AT JOIST
