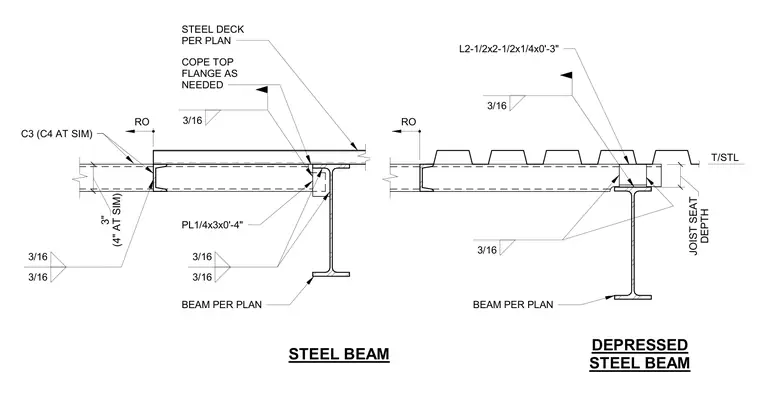

The steel beam framing details show standard and depressed steel beam conditions supporting steel deck per plan. The top flange of the steel beam is coped as needed to receive a quarter-inch by three-inch by zero-foot four-inch plate welded with three-sixteenth-inch fillet welds. A two-and-a-half by two-and-a-half by quarter-inch angle measuring zero-foot three-inches provides bearing for the depressed beam condition alongside specified joist seat depths. Three-sixteenth-inch fillet welds secure the structural steel components according to the callouts. Steel beams are sized per plan for both standard and depressed configurations.
T/STL 3/16 3/16 3/16 3/16 3/16 L2-1/2x2-1/2x1/4x0'-3" STEEL DECK PER PLAN C3 (C4 AT SIM) PL1/4x3x0'-4" DEPTH JOIST SEAT COPE TOP FLANGE AS NEEDED STEEL BEAM DEPRESSED STEEL BEAM RO RO 3/16 3/16 (4" AT SIM) 3" BEAM PER PLAN BEAM PER PLAN
