Structural · S-7M7DT

Typical Steel Beams Bearing at Steel Beam

Materials

Elements

About this detail

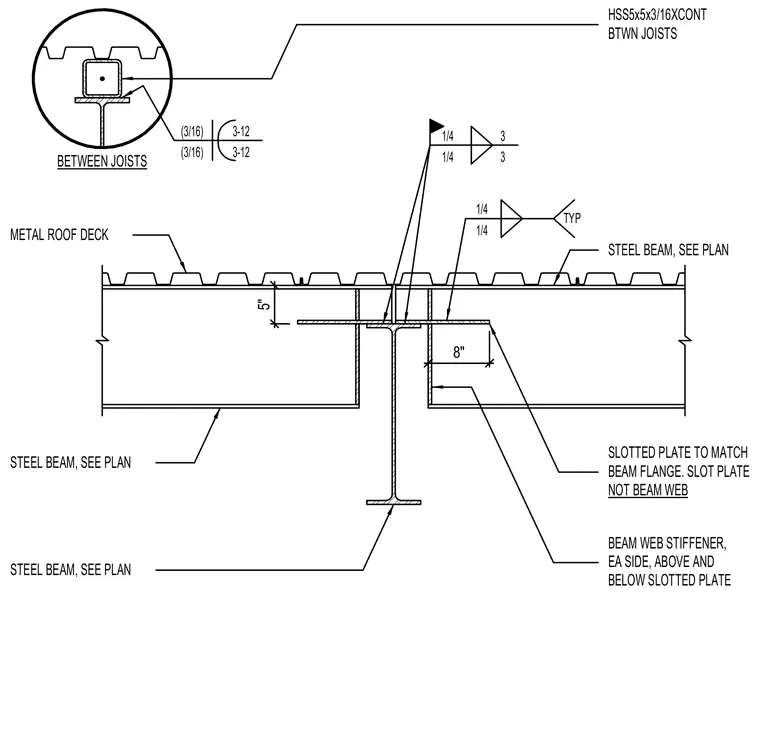

The assembly features steel beams sized per plan supporting a metal roof deck, with a slotted plate matching the beam flange. The slotted plate is detailed to slot the plate and not the beam web. Beam web stiffeners are provided on each side, positioned both above and below the slotted plate. A continuous hollow structural section measuring HSS 5x5x3/16 is placed between joists with fillet welds indicated on the drawing.
