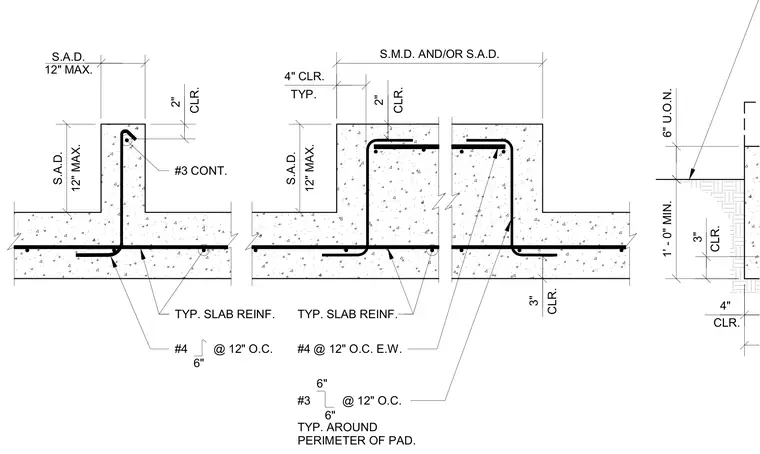

Concrete curbs and raised pads are cast monolithically with a slab. Reinforcement consists of continuous number three bars and number four bars placed at twelve inches on center each way for slab reinforcement, supplemented by number three bars bent at twelve inches on center around the perimeter of the pad. Clearances include two inches at top conditions, three inches at bottom conditions, and a minimum one foot zero inches depth for perimeter edges. Dimensional constraints limit specialized anchoring dimensions to a maximum of twelve inches unless noted otherwise.
6" U.O.N. 1' - 0" MIN. CLR. CLR. 4" 3" 12" MAX. S.A.D. 12" MAX. S.A.D. 12" MAX. S.A.D. S.M.D. AND/OR S.A.D. #3 CONT. TYP. SLAB REINF. #4 @ 12" O.C. 6" TYP. SLAB REINF. #4 @ 12" O.C. E.W. #3 @ 12" O.C. TYP. AROUND PERIMETER OF PAD. 6" 6" CLR. CLR. 2" CLR. 2" 4" CLR. TYP. 3"
