Floor framing incorporates 2x10 flat blocking between joists secured with three 16d end nails and construction adhesive applied to all sides against the plywood and joists. Seating fasteners are provided by the seating manufacturer. Blocking is omitted when new plywood is installed over existing sheathing.

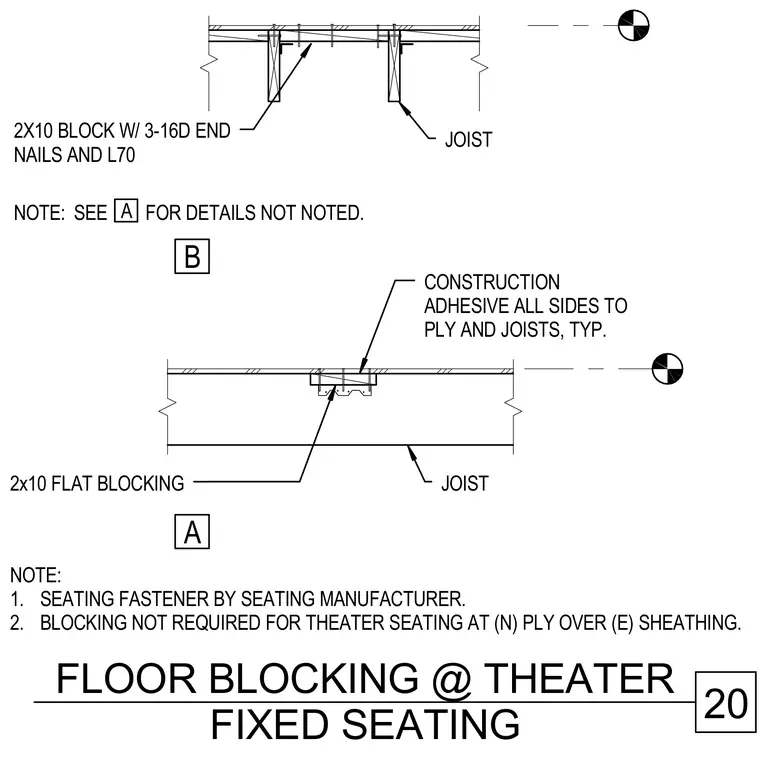

JOIST 2x10 FLAT BLOCKING B JOIST 2X10 BLOCK W/ 3-16D END NAILS AND L70 NOTE: SEE FOR DETAILS NOT NOTED. A A CONSTRUCTION ADHESIVE ALL SIDES TO PLY AND JOISTS, TYP. NOTE: 1. SEATING FASTENER BY SEATING MANUFACTURER. 2. BLOCKING NOT REQUIRED FOR THEATER SEATING AT (N) PLY OVER (E) SHEATHING. 20 FLOOR BLOCKING @ THEATER FIXED SEATING
