Structural · S-7M4H4

Concrete Drag Beam at Concrete Wall and Column Details

Materials

Concrete Reinforced Concrete Steel

Elements

Columns Beams Walls Floors / Slabs Expansion / Control Joints Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

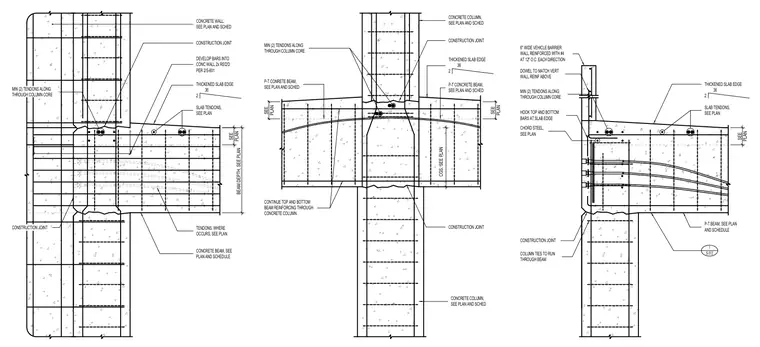

Concrete drag beam and post-tensioned beam connections frame into concrete walls and columns. Top and bottom beam reinforcing continues directly through the concrete column core, with column ties running through the beam intersection. Minimum two post-tensioned tendons pass along through the column core, and slab tendons are routed per the structural plan. A thickened slab edge occurs at specified locations, and beam bars develop into the concrete wall with required dowels and chord steel. At the vehicle barrier condition, a six-inch wide reinforced concrete wall is doweled with number four bars at twelve inches on center each direction.
