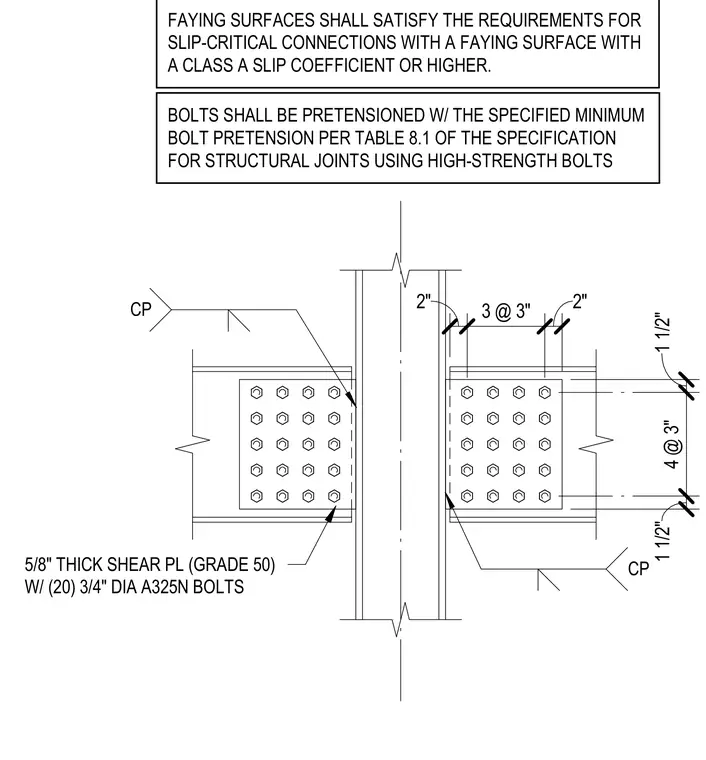

A five-eighths-inch thick Grade 50 shear plate connects steel beams to a structural steel column flange using twenty three-quarter-inch diameter A325N bolts in a bolted configuration. The bolts are pretensioned according to the specified minimum bolt pretension per Table 8.1 of the specification for structural joints using high-strength bolts. Faying surfaces satisfy the requirements for slip-critical connections with a Class A slip coefficient or higher.
2" 3 @ 3" 2" 1 1/2" 4 @ 3" 1 1/2" 5/8" THICK SHEAR PL (GRADE 50) W/ (20) 3/4" DIA A325N BOLTS CP BOLTS SHALL BE PRETENSIONED W/ THE SPECIFIED MINIMUM BOLT PRETENSION PER TABLE 8.1 OF THE SPECIFICATION FOR STRUCTURAL JOINTS USING HIGH-STRENGTH BOLTS FAYING SURFACES SHALL SATISFY THE REQUIREMENTS FOR SLIP-CRITICAL CONNECTIONS WITH A FAYING SURFACE WITH A CLASS A SLIP COEFFICIENT OR HIGHER. CP
