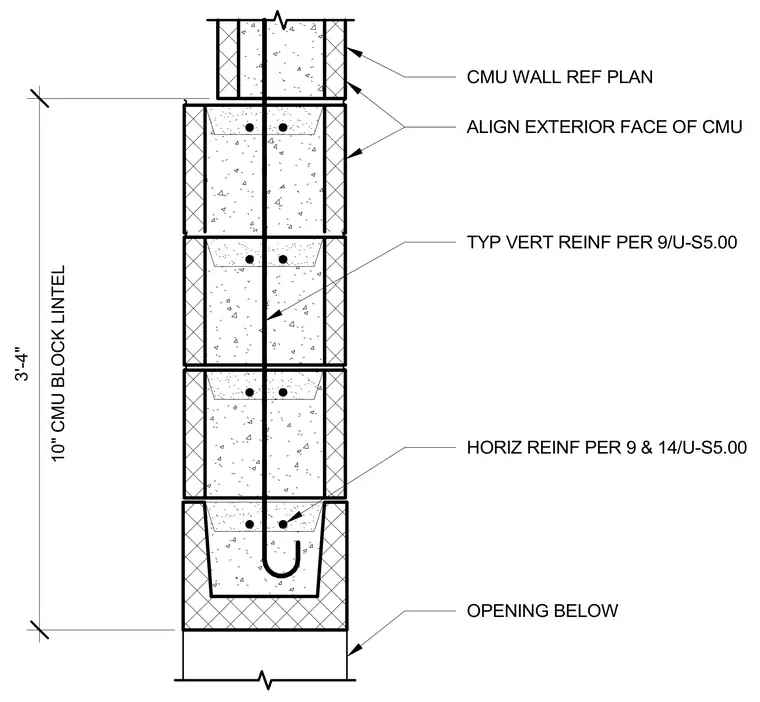

A ten-inch concrete masonry unit block lintel spans an overhead door opening, maintaining alignment with the exterior face of the CMU wall above. The assembly incorporates typical vertical reinforcement per schedule details, and horizontal reinforcement within the grouted lintel cells. The exterior face aligns continuously with the upper wall construction spanning over the opening below.
TYP VERT REINF PER 9/U-S5.00 OPENING BELOW CMU WALL REF PLAN ALIGN EXTERIOR FACE OF CMU 10" CMU BLOCK LINTEL 3'-4" HORIZ REINF PER 9 & 14/U-S5.00
