Structural · S-7KN5G

Bolted Moment Connection at Steel Column

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

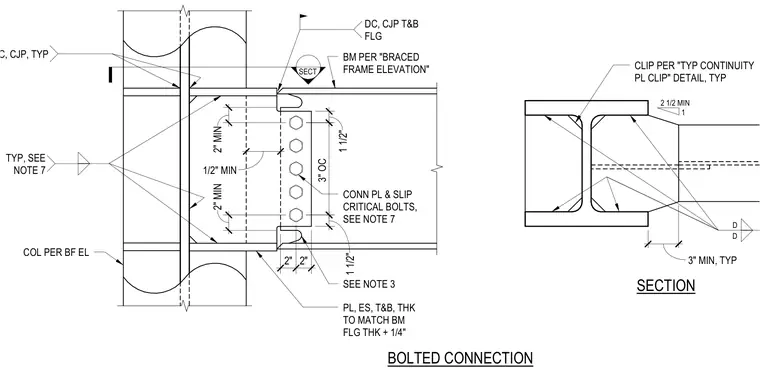

A heavy steel beam connects to a wide flange column using slip-critical bolts and connection plates at the beam web. The top and bottom flanges of the beam feature complete joint penetration welds to the column flange, with continuity plate clips installed at the column web as specified. The connection plate thickness matches the beam flange thickness plus one-quarter inch. Additional weld requirements and column specifications are referenced per the structural framing elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
