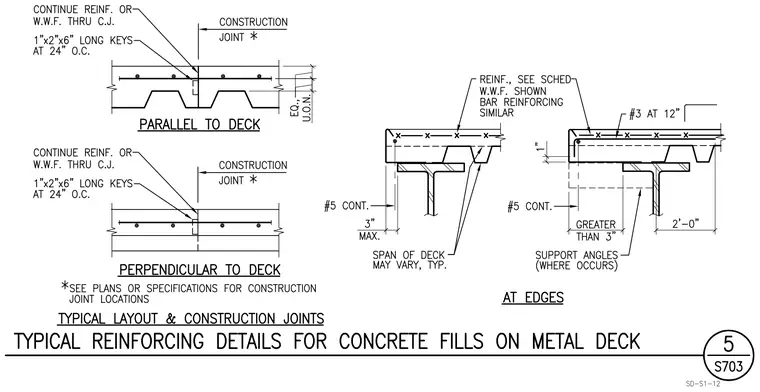

Concrete fill on metal deck features parallel and perpendicular construction joints detailed with one-by-two-by-six-inch long keys at twenty-four inches on center and continuous reinforcing or welded wire fabric continuing through the joint. Edge conditions include continuous number five reinforcing bars with welded wire fabric or bar reinforcing per schedule, supported either directly over steel framing with a maximum three-inch overhang or extending past the support with optional support angles and number three bars at twelve inches on center.
